离心式氧气压缩机

　　Centrifugal oxygen compressor
　　离心式氧气压缩机
　　主要用于外压缩空分流程氧气压缩
　　引进日立氧透全套技术，全新自主创新结构；
　　专门为压氧而设计，三十多年专业离心式氧压机设计制造经验，保证氧压机安全；
　　多腔差压密封，防止氧气介质的被污染和外泄漏；
　　与氧气接触材料的合理选择；
　　氧气流速和温度的严格控制；
　　完备的安全控制和防喘振控制措施；
　　Mainly used for oxygen compression of external compression air separation process

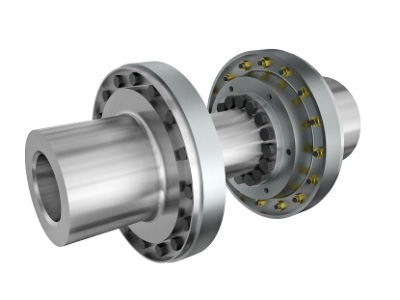

膜盘联轴器 Diaphragm coupling

　　Introduce the whole Hitachi oxygen turbine technology, brand new independent innovation structure;
　　Specially designed for oxygen compression. Maximumly guarantee the security of oxygen compressor with over 30 years’ professional designing and manufacturing experience of centrifugal oxygen compressors.;
　　Multi-cavity differential pressure seal to avoid the pollution and leakage of oxygen medium;
　　Reasonable selection of materials connecting with oxygen;
　　Strict control of oxygen flow rate and temperature;
　　Complete security control measures and anti-surge control measures;

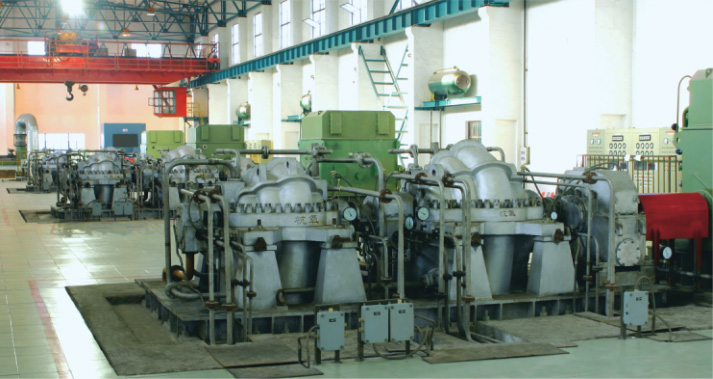

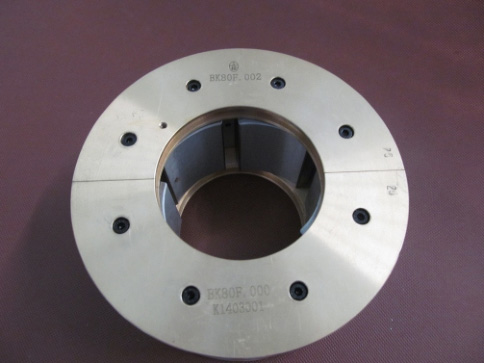

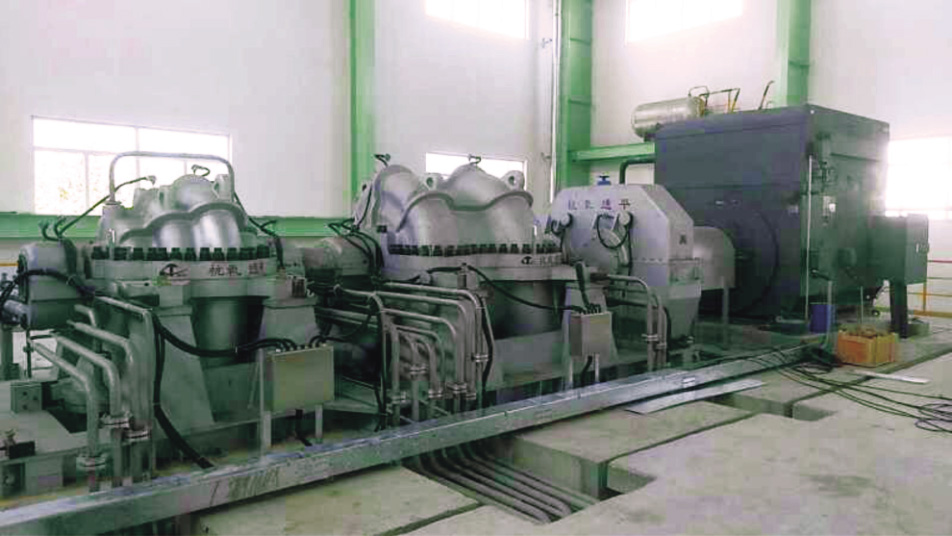

氧透现场布置 Oxygen turbine site layout	可倾瓦轴承 Tilting-pad bearing

六万中压氧透
65,000Nm³/h Centrifugal oxygen compressor

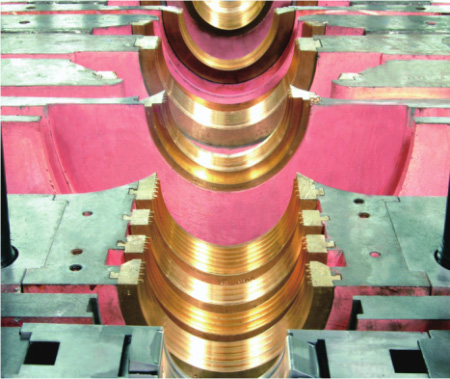

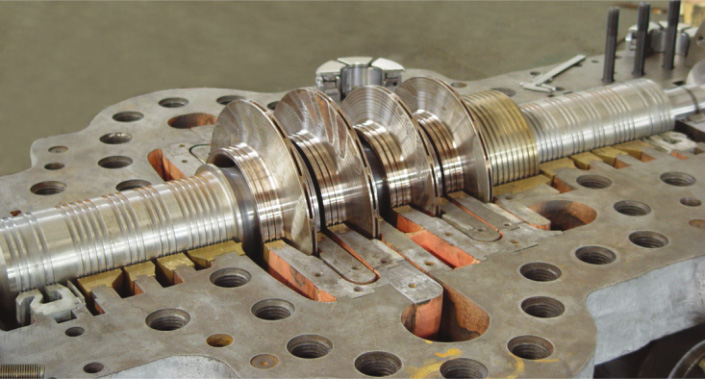

氧透装配中 Oxygen turbine compressor in assembly	氧透机壳镀铜 Oxygen turbine compressor casing copper plating

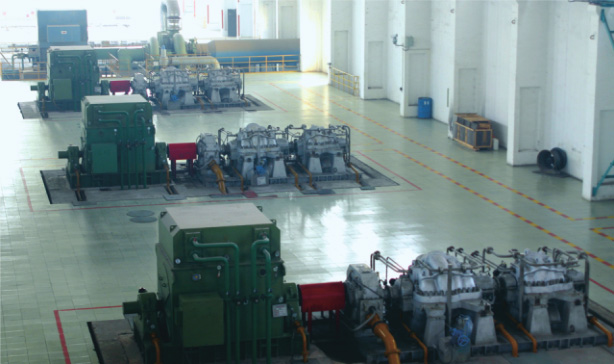

6万氧透 60,000 Nm³/h Oxygen turbine compressor	“中高压离心式氧压机的关键技术研究”获得浙江省科技进步二等奖 “The research on key technology of middle-high pressure centrifugal oxygen compressor” won the second prize of Zhejiang Science and Technology Progress Award

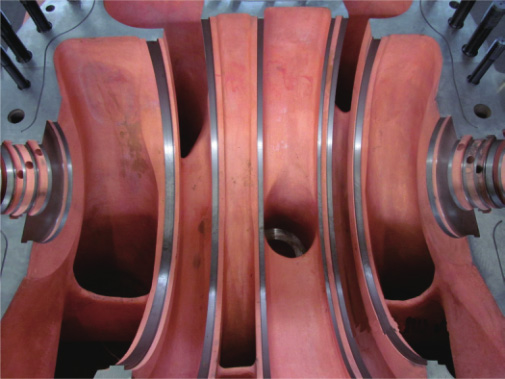

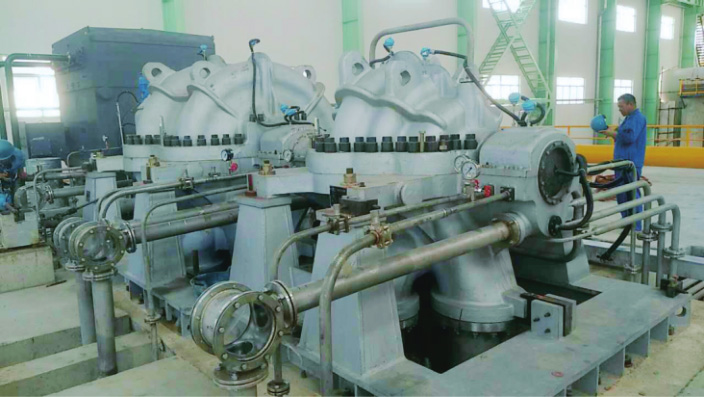

现场运行的氧透 compressor on the site	机壳镀铜 Casing copper plating

氧气透平压缩机谱系 Tree diagram of oxygen turbine compressor
此种压缩机结构均为单轴型，根据排气压力大小的不同分为单缸和双缸两种类型 This compressor is single shaft type. According to different discharge pressure, it is divided into two types, single-cylinder type and double-cylinder type
单缸型 Single-cylinder type	<1.0MPa	3TYS72	3TYS85	3TYS96	3TYS130	3TYS140	3TYS160
双缸型 Double-cylinder type	<4.0MPa	3TYS72+2TYS58	3TYS85+2TYS68	3TYS96+2TYS70	3TYS130+2TYS80	3TYS140+2TYS90	3TYS160+2TYS100
氧气流量 ×10³ Nm³/h Oxygen flow×10³Nm³/h	6 12 17 28 40 75 100

　　表格仅供用户参考，最终实际选型由制造商计算后提供。
　　The diagram is only for reference. The actual type is provided by the manufacturer after calculation.
